Scuff Resistance Testing instrument
Model KSRT-450 | Rub & Scuff Tester for Printed & Coated Packaging

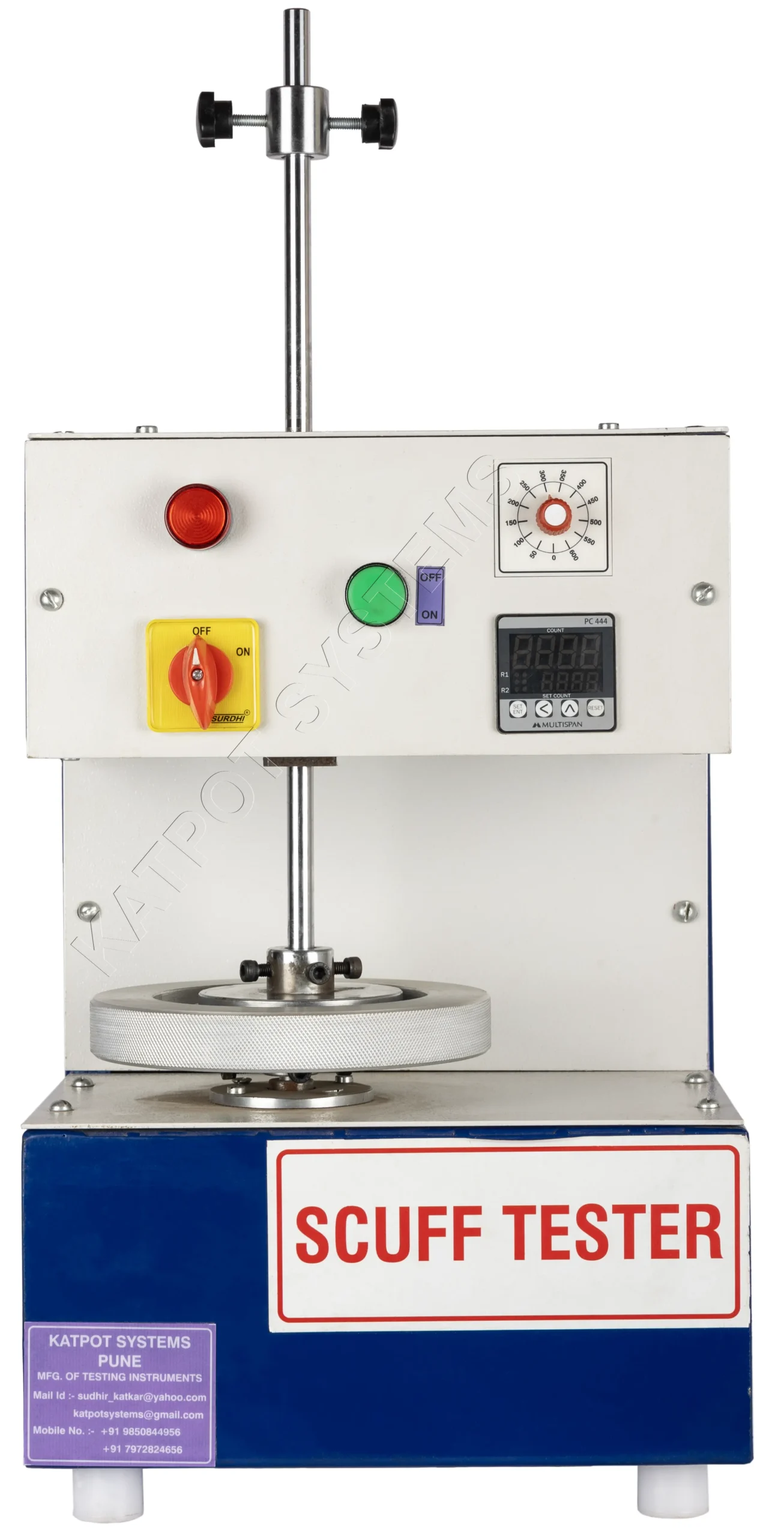

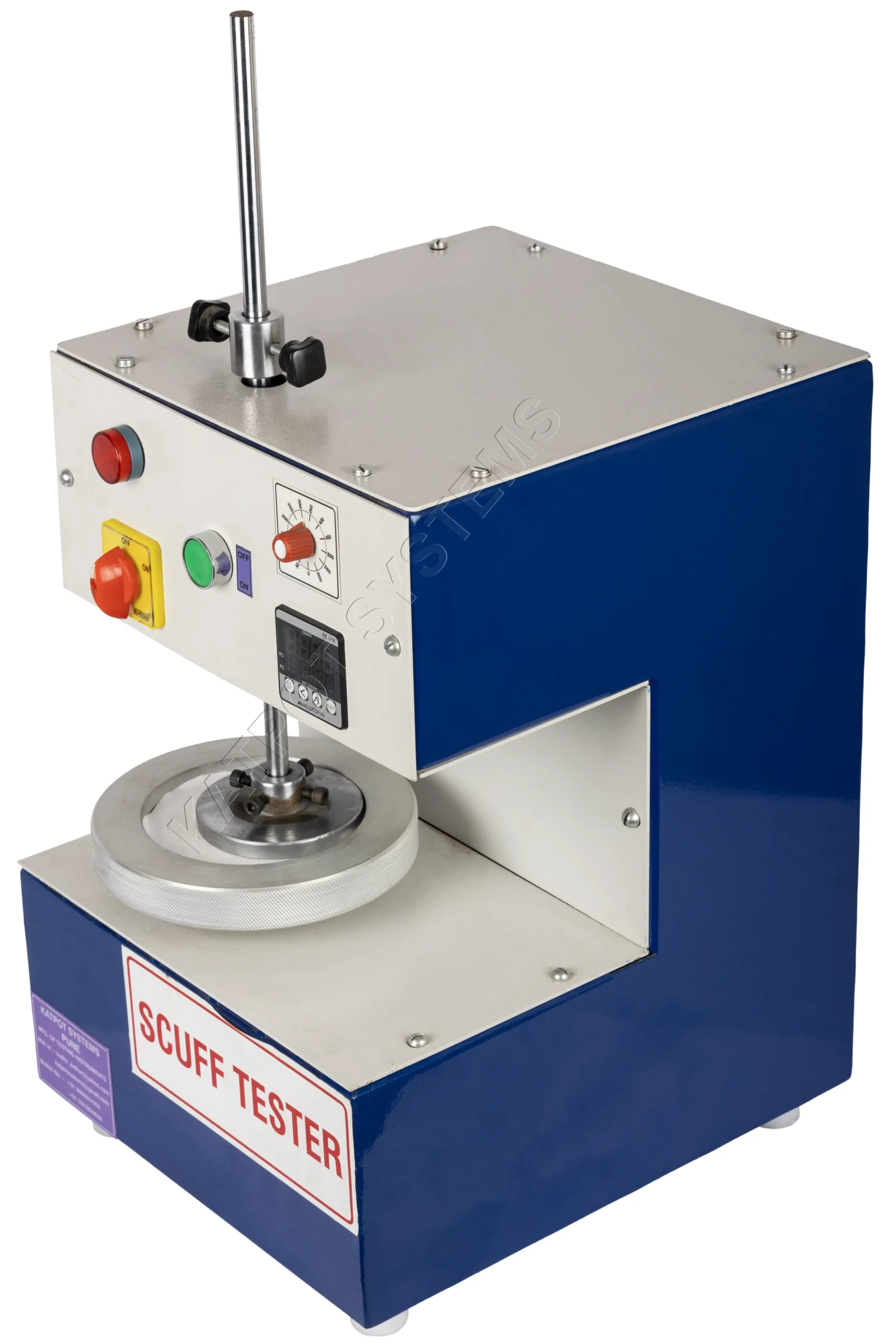

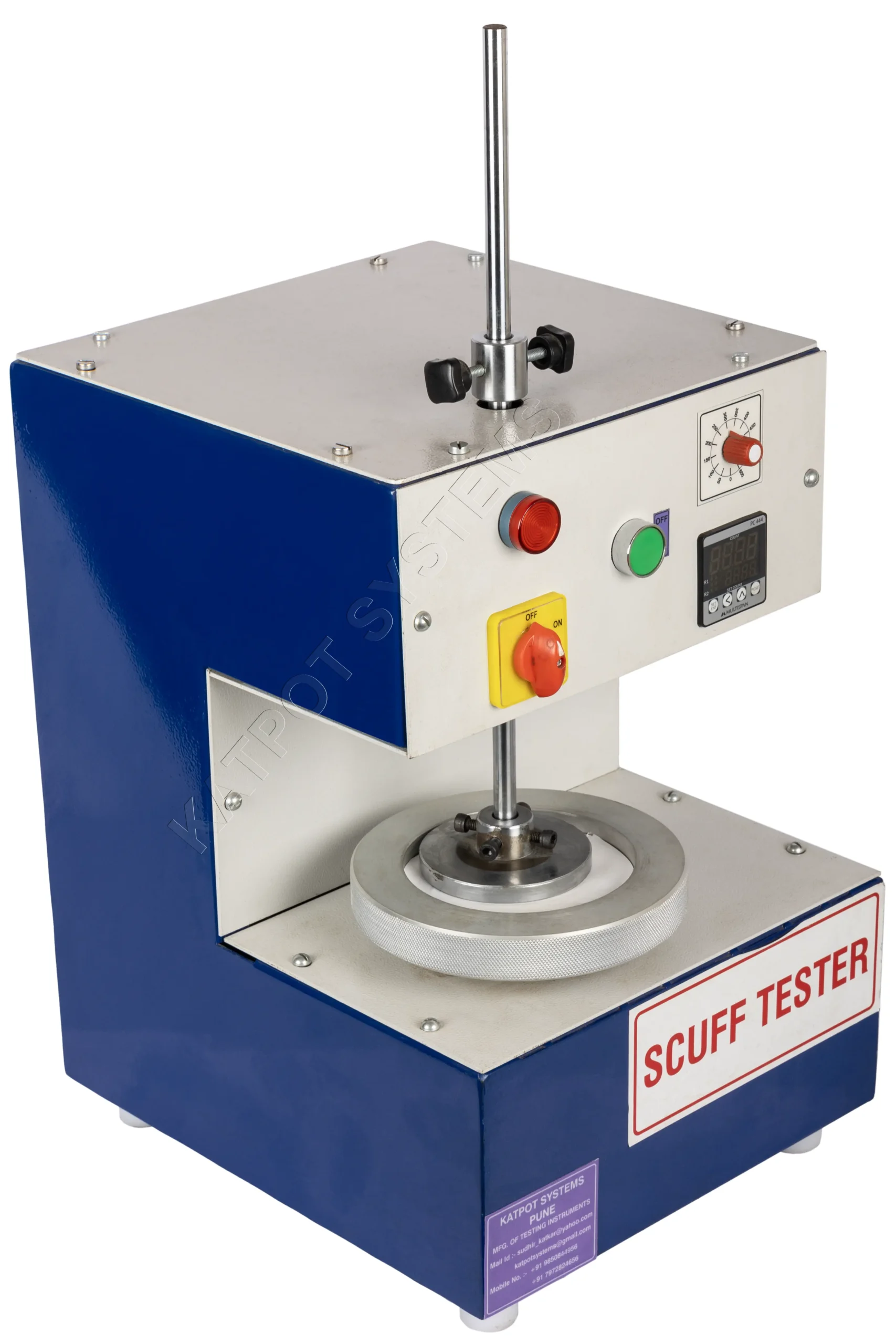

The Katpot Systems Scuff Resistance Tester (Model KSRT-450) is a specialized instrument designed to evaluate the abrasion, rub resistance, and scuff durability of printed or coated surfaces.
It simulates the rubbing action that occurs during transportation, handling, storage, stacking, and friction, helping determine how well a material withstands surface wear.
This test is critical for industries where print quality, surface finish, and coating durability directly affect product presentation and customer satisfaction.
Suitable for testing labels, packaging films, cartons, paperboard, printed materials, and coated substrates.
Complies with leading international standards including ASTM F2497 and BS 3110, ensuring accurate and reliable performance evaluation.
Advanced Features
- Accurately simulates real-world rubbing and scuffing conditions.
- Adjustable cycle count for controlled and repeatable testing.
- High-accuracy 2 psi loading system ensures standardized pressure.
- 60 RPM rubbing speed provides uniform abrasion results.
- Suitable for evaluating printed inks, varnishes, coatings, and laminations.
- Compact and robust design, ideal for QA/QC labs and printing units.
- Easy-to-operate front panel with start/stop and cycle control.
- Designed for long operational life with minimal maintenance.
Product Importance
- Ensures the print or coating does not fade, rub off, or get damaged during shipping and handling.
- Prevents product rejection due to aesthetic defects, scratches, or scuff marks.
- Helps evaluate ink adhesion, coating durability, varnish performance, and lamination quality.
- Essential for meeting brand quality standards in FMCG, pharmaceutical, label printing, and premium packaging sectors.
- Supports R&D teams in developing more durable inks, coatings, and surface treatments.
- Helps packaging manufacturers ensure consistent print quality across production batches.
Technical Specifications
| Model No. | KSRT-450 |
|---|---|
| Test Load | 2 psi |
| Rubbing Speed | 60 RPM |
| Cycle Count | Pre-settable cycle counter (up to 1000 cycles) |
| Test Area | Standard test area from 10 cm² to 50 cm² |
| Motion Type | Oscillating / Rotational rubbing action |
| Compliance Standards | ASTM F2497, BS 3110 |
| Construction | Rigid body with precision alignment |
| Display | Digital cycle counter and operation indicators |
| Power Supply | 230 V AC ±10 %, 50 Hz |
