Peel Adhesion Tester – Variable Speed
Vertical Variable-Speed Model KPAV-100 (G) | Graph & Software-Based Peel Testing Machine

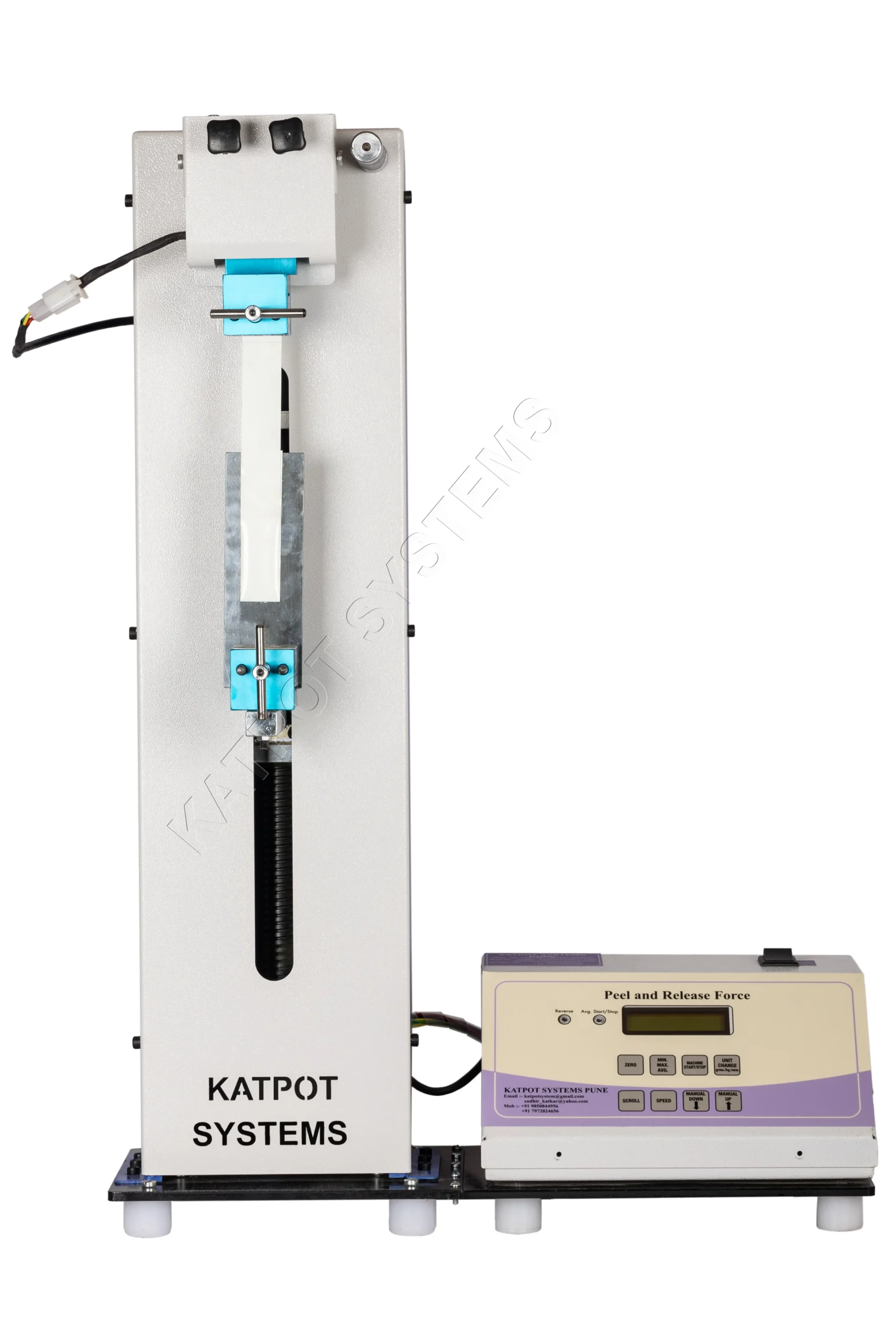

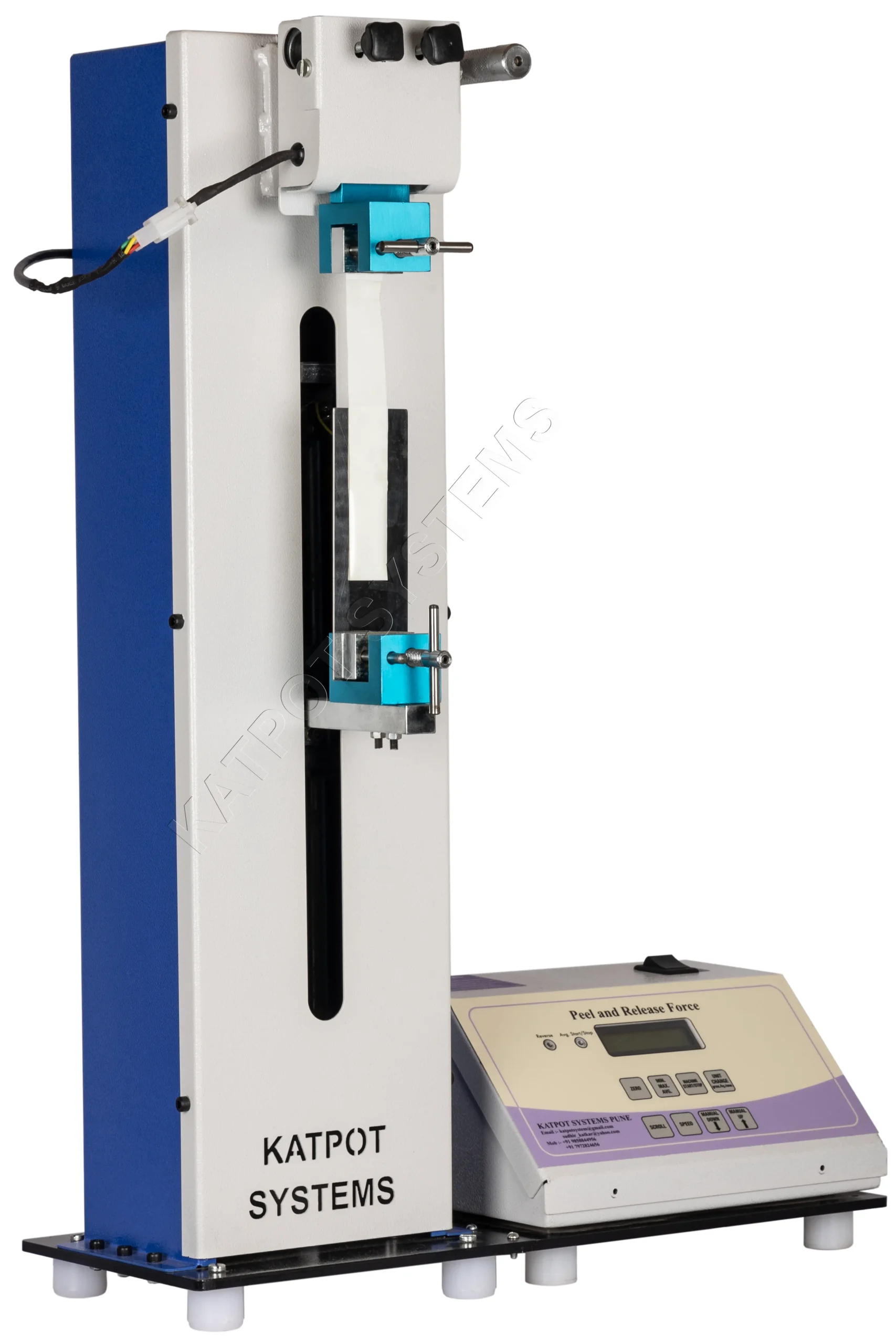

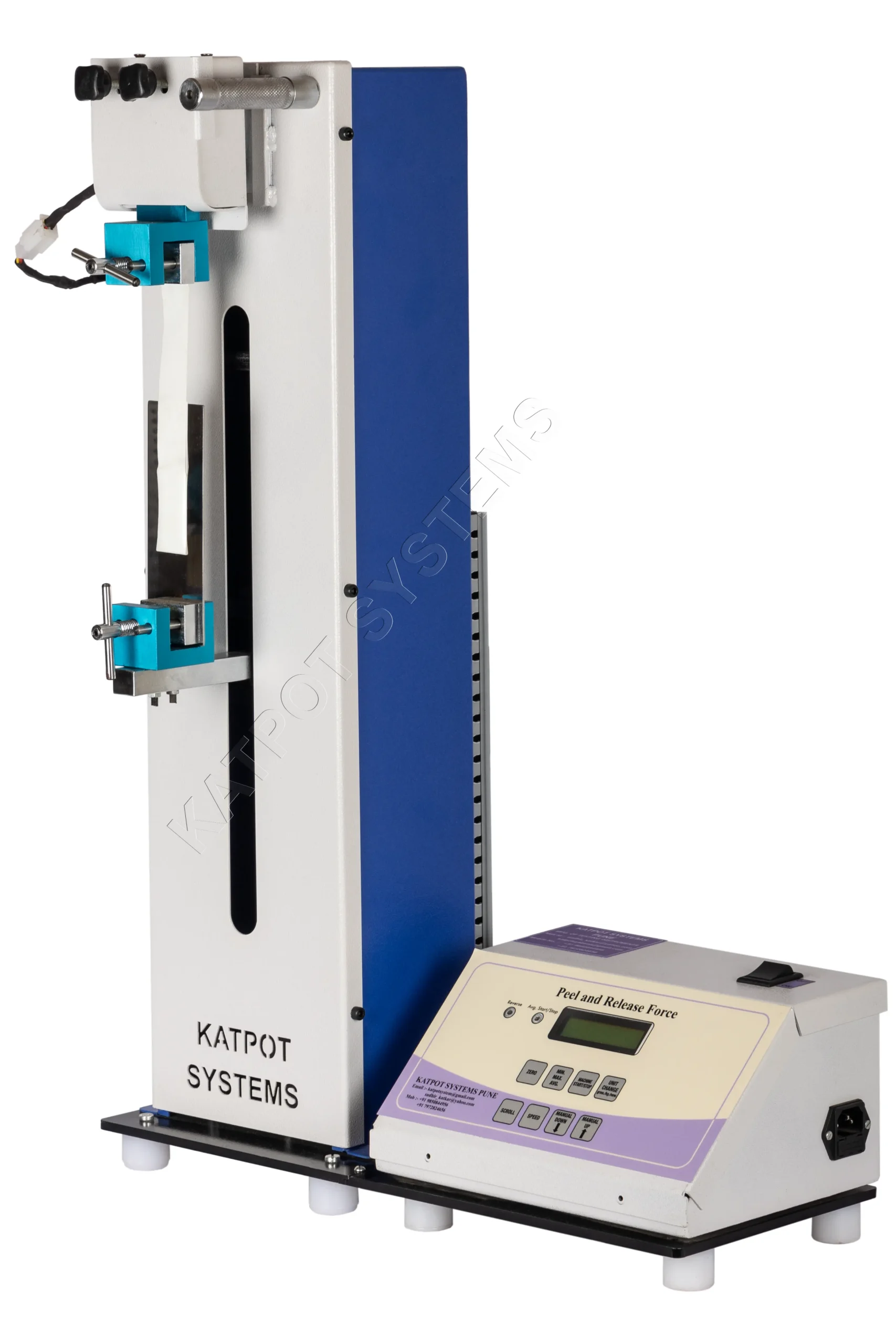

The Katpot Systems KPAV-100G Peel Tester is the most advanced model in the vertical peel testing range, equipped with variable test speed, graph software, and batch analytics.
Designed for high-precision measurement of peel adhesion strength for tapes, labels, films, and laminates, this model allows users to adjust peel speeds to match different test standards, materials, and R&D conditions.
The real-time Load vs Time graph, combined with 5-graph batch overlay and auto-average curve, makes it the perfect instrument for formulation development, adhesive coating analysis, and comparative testing.
Fully compliant with ASTM D3330, it provides unmatched test repeatability, accuracy, and digital traceability needed in R&D labs, QA departments, packaging units, and adhesive manufacturing plants.
Advanced Features
-
Programmable speed from low-speed to high-speed analysis.
-
Multiple curve overlay to identify peak instability trends.
-
Auto calculation of average peel force.
-
Data filtering removes sudden transient force spikes.
-
Suitable for customer-based custom test standards.
Product Importance
-
Variable speed simulates actual peel conditions like slow manual peel or fast machine peel.
-
Identifies adhesive failure zone behaviour at different load rates.
-
Helps optimize adhesives for cold/hot flow characteristics.
-
Suitable for R&D formulation benchmarking.
-
Detects adhesive transfer issues under dynamic loading.
Technical Specifications
| Model No | KPAV-100 (G) |
|---|---|
| Peel Angles | 90° & 180° |
| Measurement Range | 0 to 10 kg |
| Resolution / Accuracy | 0.1 g / ±0.5% FS |
| Variable Test Speed | 50 to 500 mm/min |
| Standard Speed | 300 mm/min |
| Sample Width | 25 mm |
| Travel Length | 210 mm |
| Load Cell | High-accuracy strain gauge |
| Software Connectivity | PC software with real-time graph |
| Batch Graph Overlay | Up to 5 curves simultaneously |
| Report Format | PDF & Excel export |
| Calibration | Inbuilt calibration (NABL certificate available) |
| Compliance | ASTM D3330 |
| Power Supply | 230 V AC ±10%, 50 Hz |
| Construction | Heavy-duty MS Body |
