Yarn & Textile Tensile Testing Machine
Model KTT-1000-T (Computerized) | Yarn & Textile Tensile Testing Machine

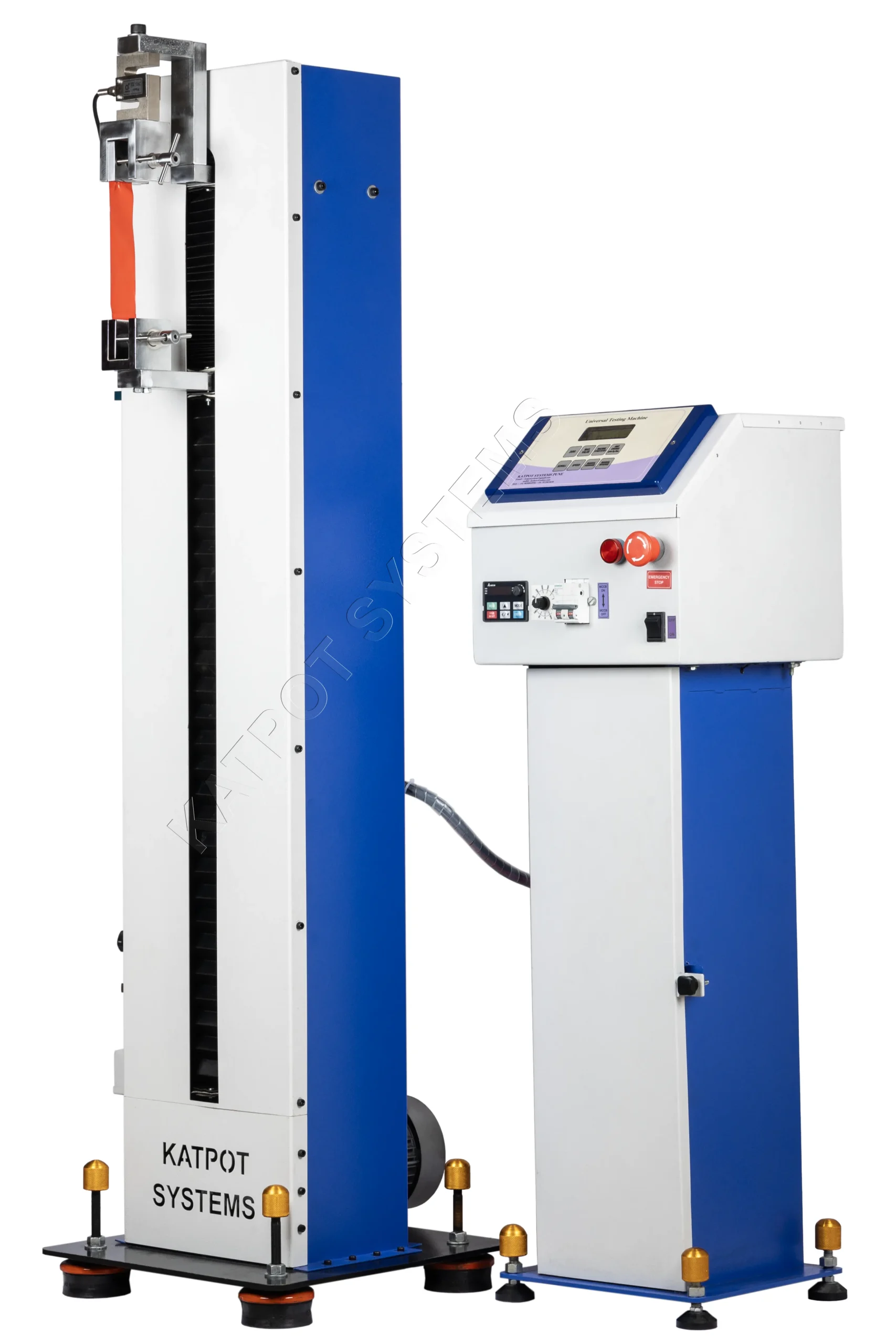

The Katpot Systems Tensile Strength Tester – Model KTT-1000-T (Computerized) is engineered specifically for yarns, threads and textile strips. It combines a robust mechanical frame with high-resolution load measurement and PC-based data logging to capture tensile strength, elongation and break behavior of textile materials. With suitable grips and adjustable test speeds, it supports single-end yarn tests as well as narrow fabric samples. The system can be configured to comply with relevant textile tensile standards such as ASTM D2256 / ISO 13934 for R&D, product development and routine QC testing.
Advanced Features
-
Thread-specific clamp with zero slippage.
-
Variable speed elongation cycles.
-
Auto result averaging for multi-sample tests.
-
Elongation-at-break mapping.
-
Coefficient-based performance grading.
Product Importance
-
Measures break load of yarns/threads during weaving.
-
Tests fatigue response of textile fibres.
-
Identifies weak fibre lots during inbound sampling.
-
Determines stitch integrity & seam strength.
-
Supports fast garment QC cycles.
Technical Specifications
| Model No. | KTT-1000 T |
|---|---|
| Capacity | 0 to 100 kg (customizable) |
| Load Accuracy | ±0.5% |
| Crosshead Travel | 700–1000 mm |
| Speed Range | 50–500 mm/min |

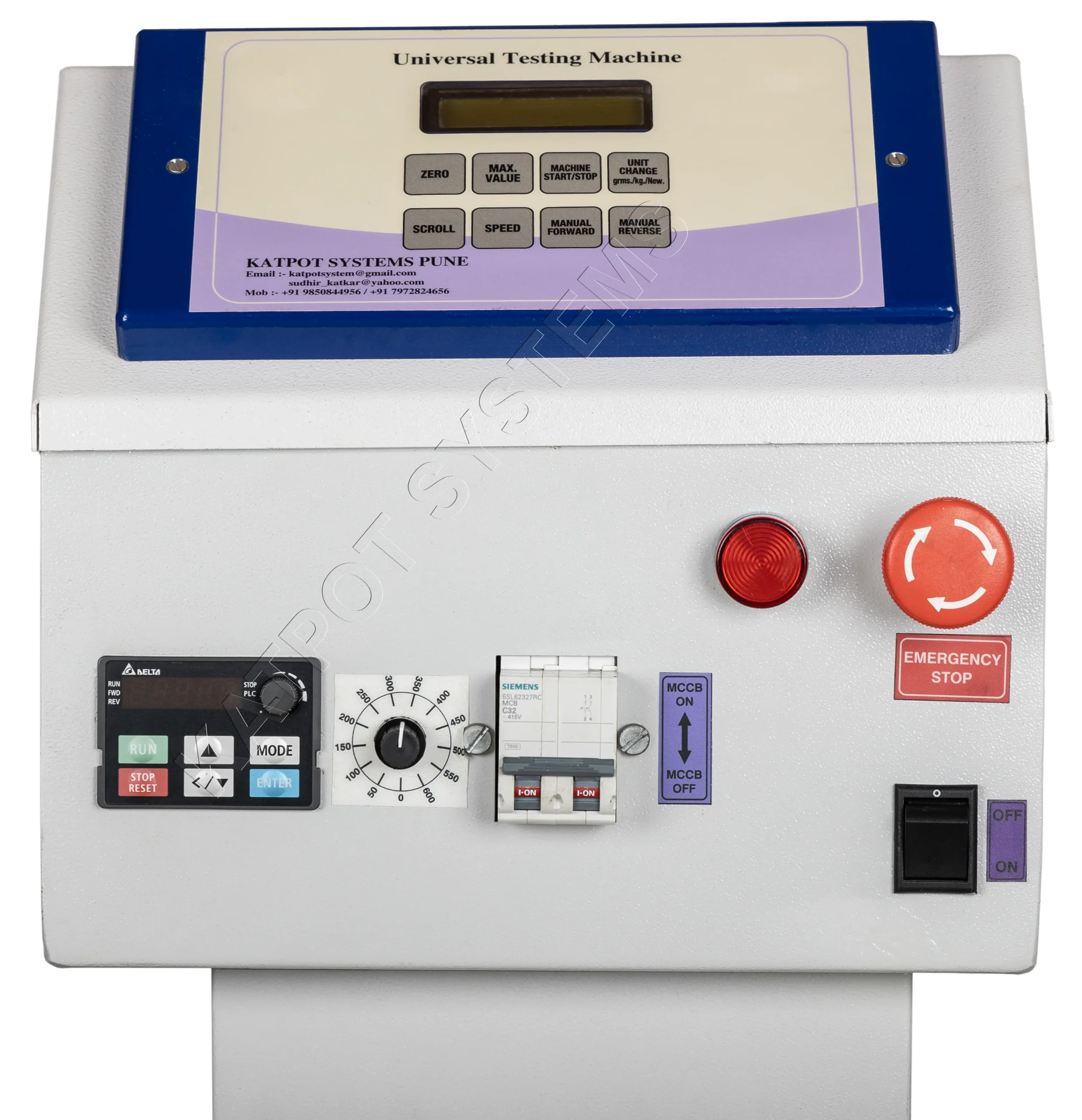

| Software Interface | USB/RS232 PC connectivity |
| Real-Time Graphing | Load vs. Time / Load vs. Elongation |
| Report Export | PDF, Excel with statistics |
| Test Modes | Tensile, elongation, break load |
| Calibration | NABL-traceable load cell calibration |
| Power Supply | 230 V AC, 50 Hz |
| Construction | Powder-coated MS Strong Body. |
| Standards | ASTM |
| Note : | Customization avaiable in machine according to requirements |
